16MM 24V G SPRING RETURN
- Category: METAL PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 250

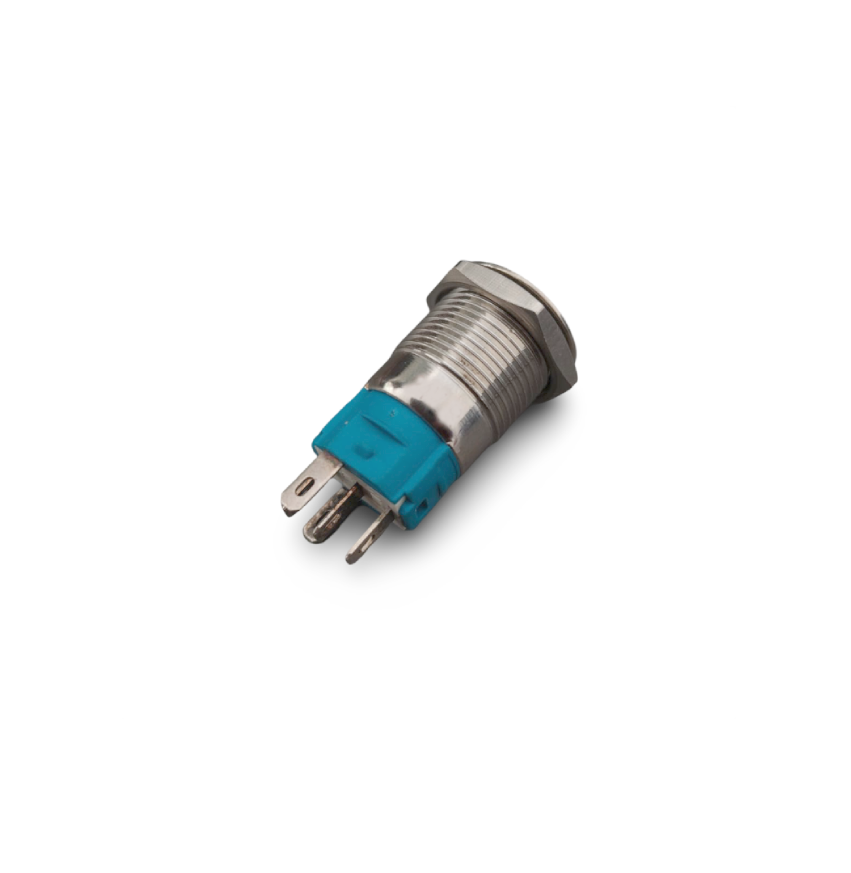

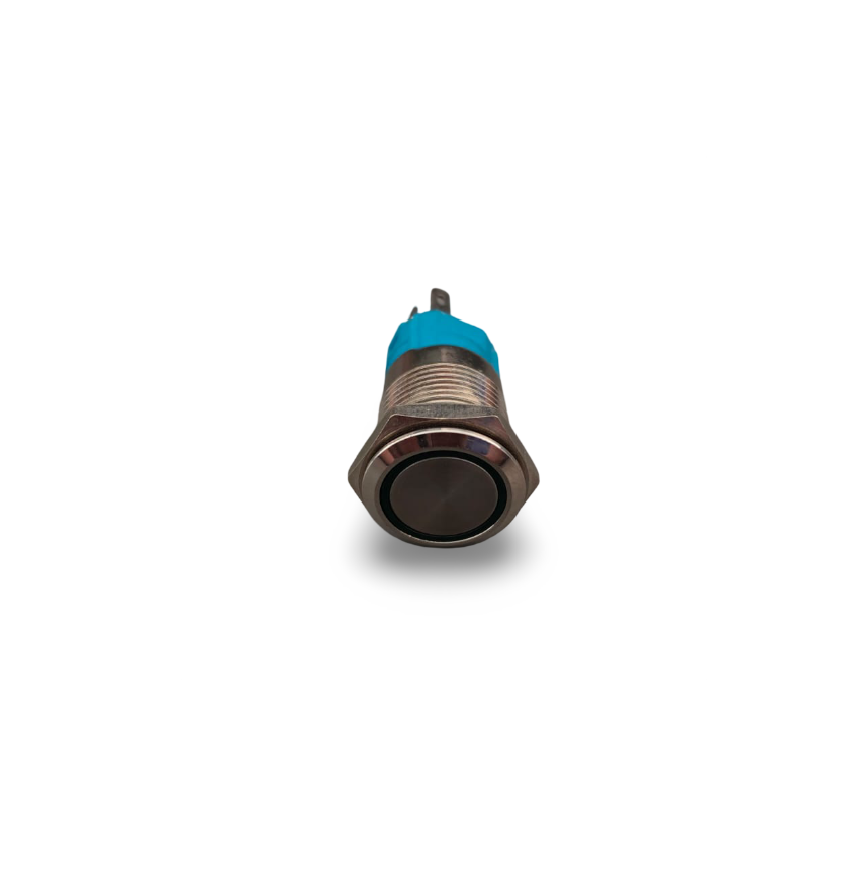

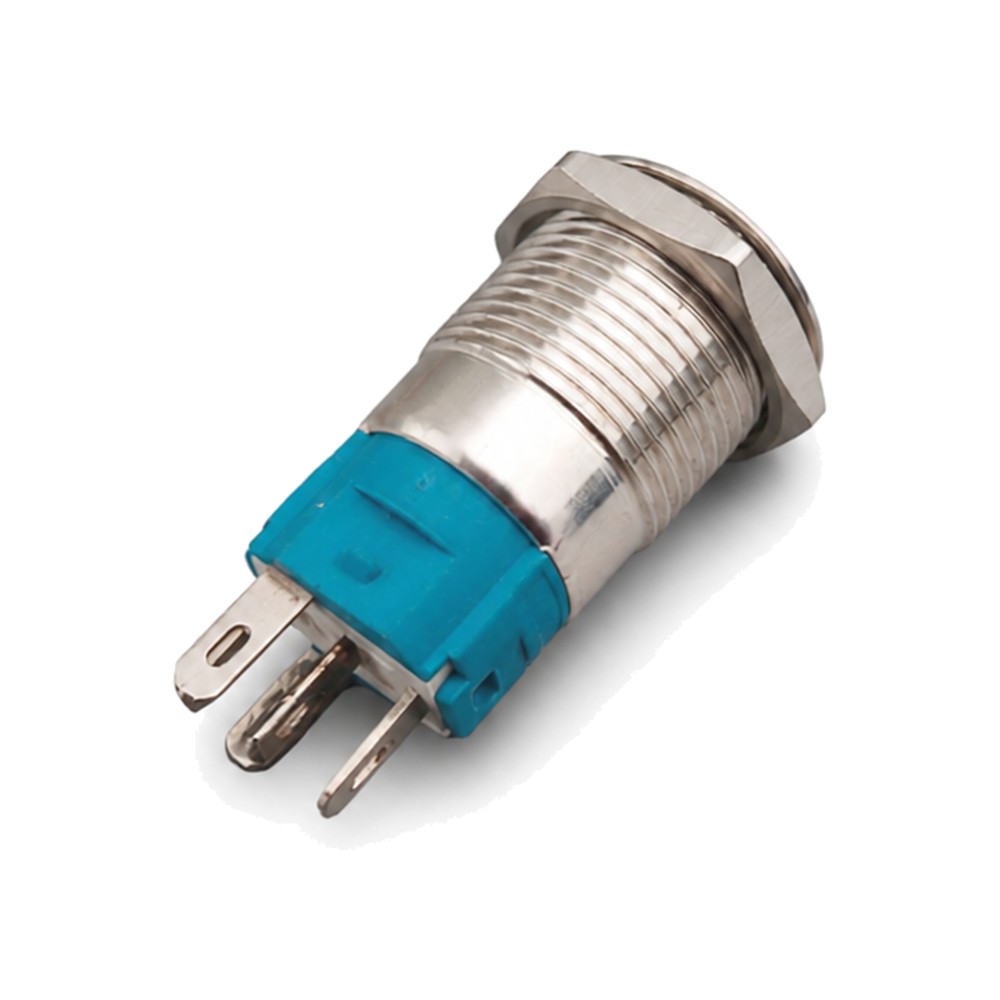

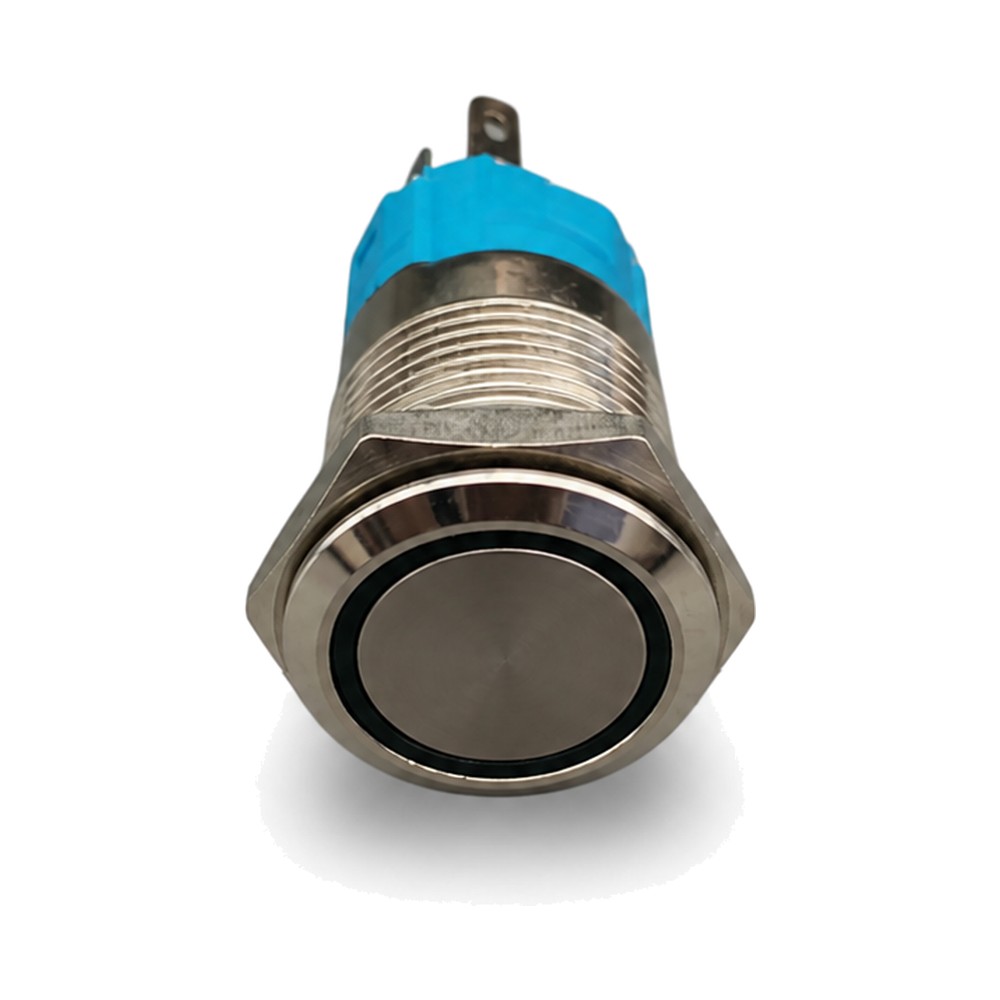

JIGO 16mm 24V Green Metal Push Button Switch – Momentary Type (Spring Return)
High-quality, momentary-action push button with green LED illumination, designed for reliable control in industrial and electronic applications.
Product Details
Brand: JIGO
Mounting Hole Size: 16mm
Rated Voltage: 24V DC
Operation Type: Momentary (Spring Return) – returns to original position after release
Illumination: Green LED ring
Housing Material: Stainless steel or zinc alloy (anti-vandal type)
Contact Type: SPST or SPDT (model dependent)
Ingress Protection: IP65 (dust and water resistant)
Panel Thickness Compatibility: 1–6mm
LED Lifespan: ≥50,000 hours
Terminal Type: Solder or screw terminals
Key Features
Momentary action – returns automatically when released
Sturdy metal housing – impact and wear-resistant
Green LED illumination – clear visual indication
Compact design – fits standard 16mm mounting holes
IP65 rating – suitable for wet or dusty environments
Long service life – ideal for heavy-duty use
Applications
Control panels and industrial automation
Door access and security systems
DIY electronics and robotics
Instrumentation and test equipment
Vehicle and marine controls
Start/reset/trigger buttons
