AG-200X150X130
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

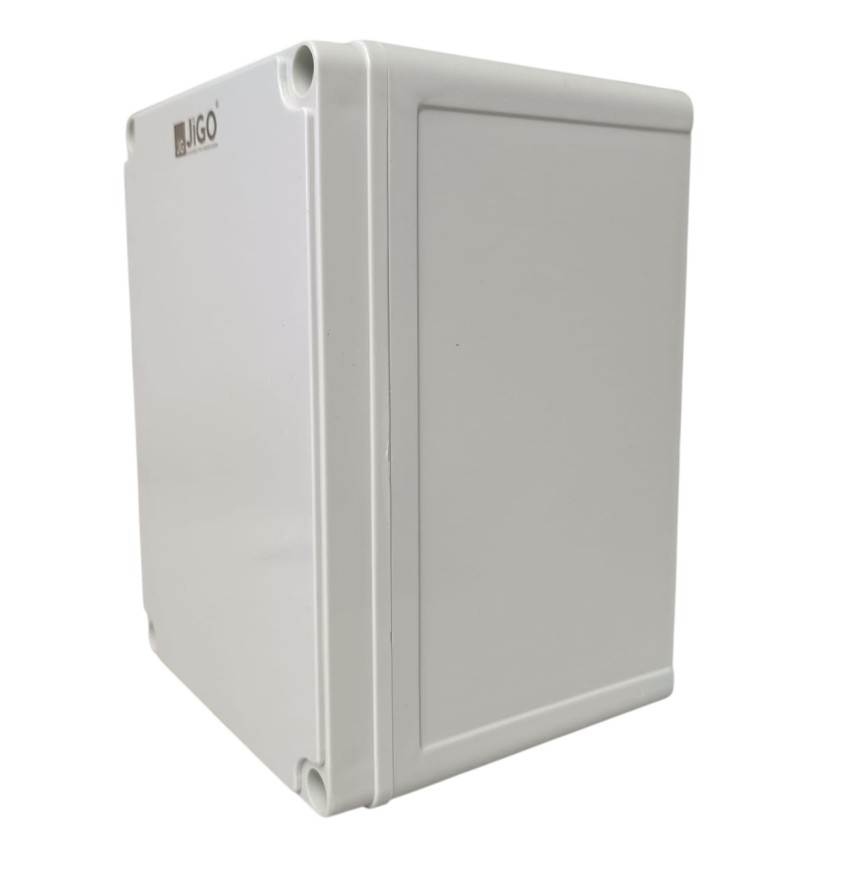

The AG-200X150X130 is a durable, mid-to-large-sized junction box engineered to safely house electrical and electronic components. Made from high-impact ABS or polycarbonate, this enclosure offers robust protection against dust, moisture, and mechanical impact. Its increased depth and spacious layout make it suitable for more complex installations, including control systems, relay panels, and terminal assemblies.
Product Details:
Material: Flame-retardant ABS or UV-stabilized Polycarbonate
External Dimensions: 200mm (L) x 150mm (W) x 130mm (H)
Color: Light Grey (RAL 7035 standard)
Ingress Protection: IP65 / IP66 (with silicone gasket)
Cover Type: Screw-fastened lid (typically 4–6 corner screws)
Mounting Options:

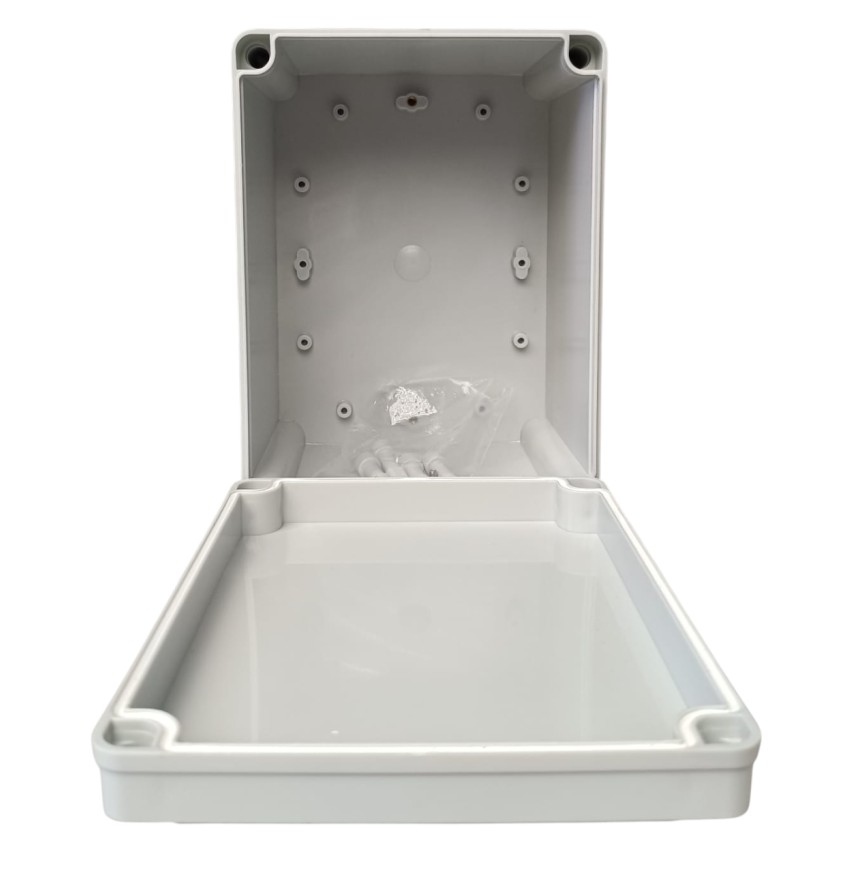

Internal: Molded bosses for PCBs, terminal blocks, or DIN rail

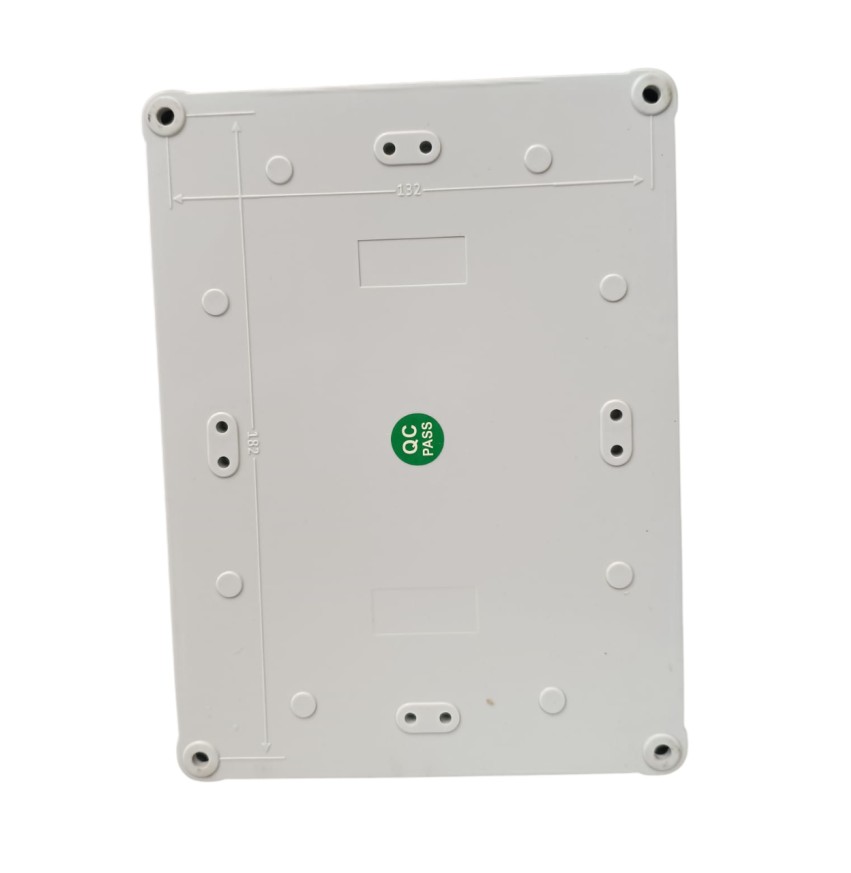

External: Wall mounting via corner lugs or optional brackets
Temperature Resistance: -20°C to +80°C
Cable Entry: Solid sidewalls (customizable with optional knockouts or gland holes)
Weight: Approx. 900g – 1.3kg (varies by configuration and material)
Key Features:
Deep internal space for complex wiring or taller components
UV- and impact-resistant material suitable for outdoor or industrial use
High IP rating ensures excellent resistance to dust and water
Non-conductive and corrosion-free for electrical safety and long-term use
Easy to drill, cut, or machine for custom cable entry and control components
Smooth surface for labels, stickers, or engraved plates
Flame-retardant material enhances safety in electrical applications
Applications:
Electrical and instrumentation junction boxes
Industrial control panel housings
Relay, sensor, and terminal block enclosures
Outdoor monitoring or automation system protection
Renewable energy component boxes (solar/battery systems)
Networking and data interface housing
Marine, agricultural, or utility infrastructure enclosures
Smart home or IoT control system hubs
