HS-460X270X160
- Category: HS SERIES
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

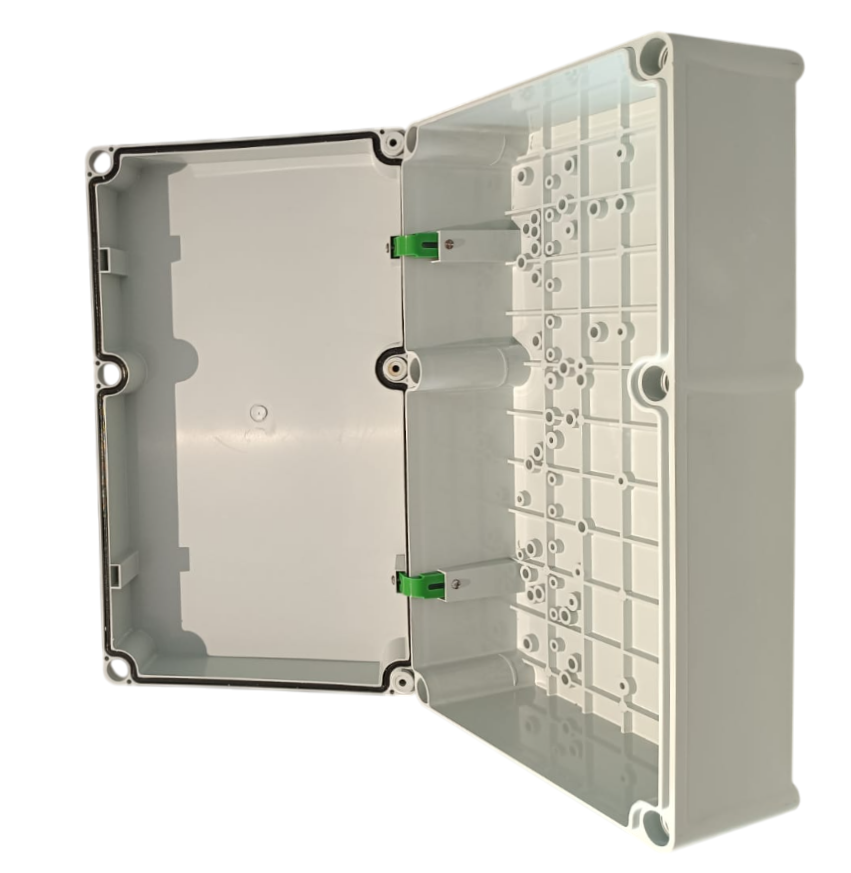

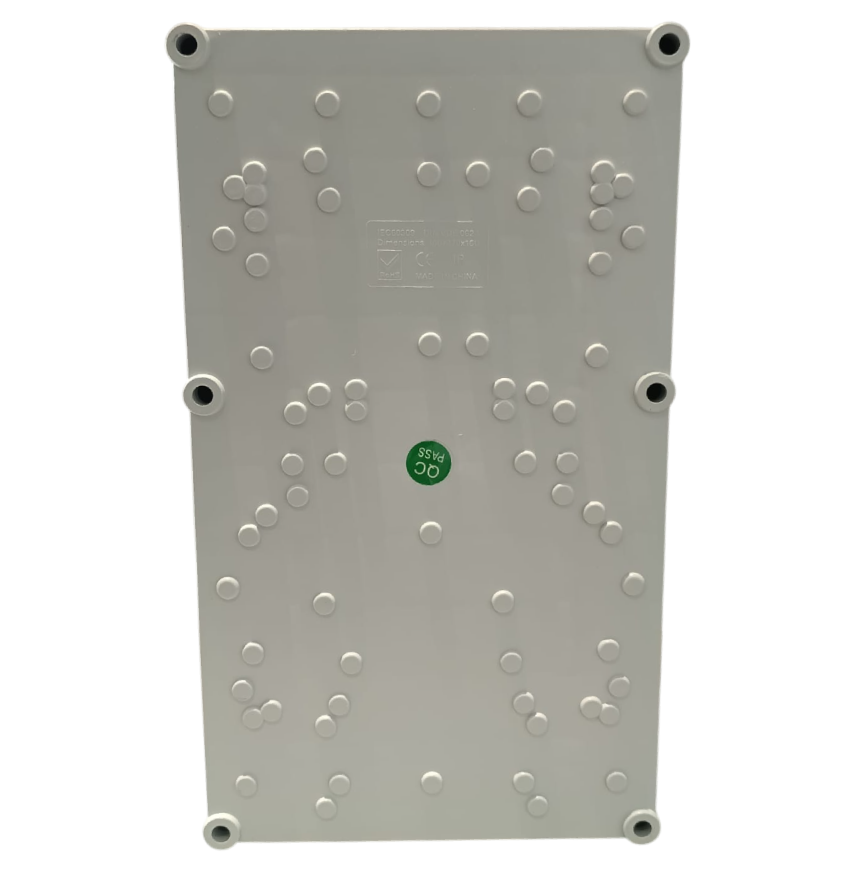

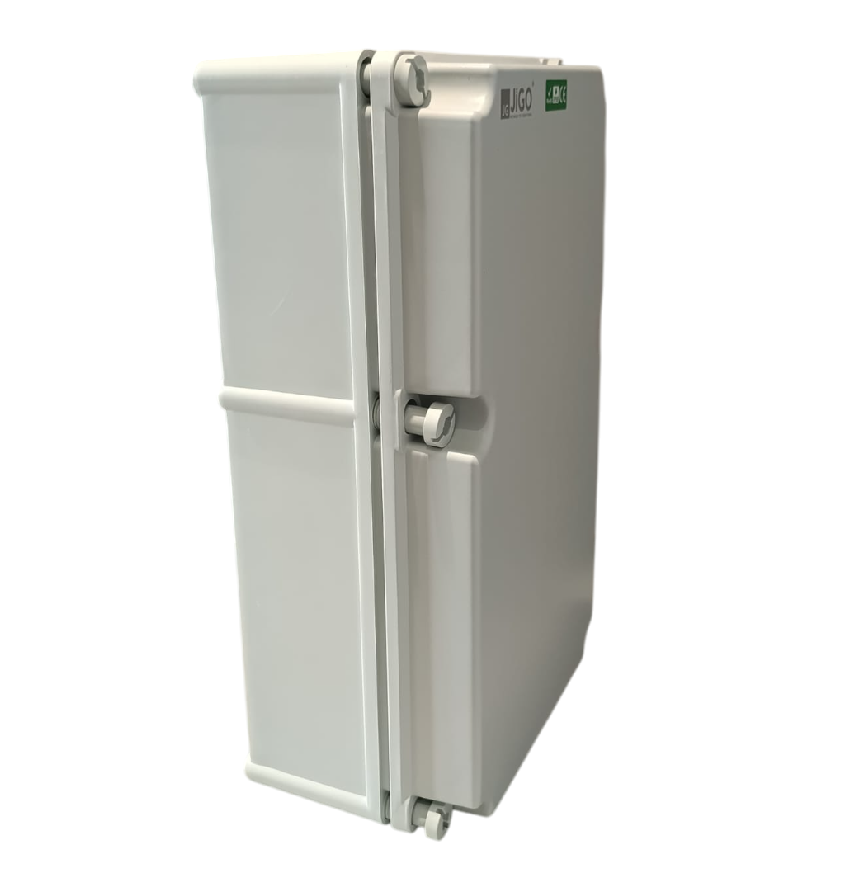

The HS-460X270X160 is a robust, weather-resistant junction box engineered for the secure enclosure of electrical and electronic components. Built to withstand harsh environments, it offers dependable protection and flexible installation options for a wide range of industrial and commercial applications.
Product Details
Product Name: HS-460X270X160 Junction Box
External Dimensions: 460mm (L) x 270mm (W) x 160mm (H)
Material: [Polycarbonate / ABS / Sheet Steel / Aluminum – specify as needed]
Color: Light Grey (RAL 7035) or custom (optional)
Ingress Protection: IP66/IP67 – dustproof and waterproof
Cover Type: Hinged or screw-type lid, optional locking mechanism
Gasket: Continuous silicone or rubber gasket for water and dust sealing
Mounting: Wall/surface mountable with built-in mounting points
Temperature Resistance: -40°C to +85°C
Certifications: CE, RoHS, optional UL or IEC compliance
Key Features
Durable construction for long-term use in industrial settings
High ingress protection for outdoor or wet environments
UV and flame-resistant enclosure material
Spacious internal layout for wiring, DIN rails, or terminal blocks
Secure lid with reliable sealing for weather resistance
Pre-drilled mounting holes and gland entry options
Low maintenance with corrosion-resistant components
Applications
Electrical wiring and connection hubs
Industrial automation and control panel enclosures
Solar PV junction and combiner boxes
Outdoor lighting and power distribution systems
Telecommunication and data cable housing
HVAC control systems
Security, alarm, and access control enclosures
