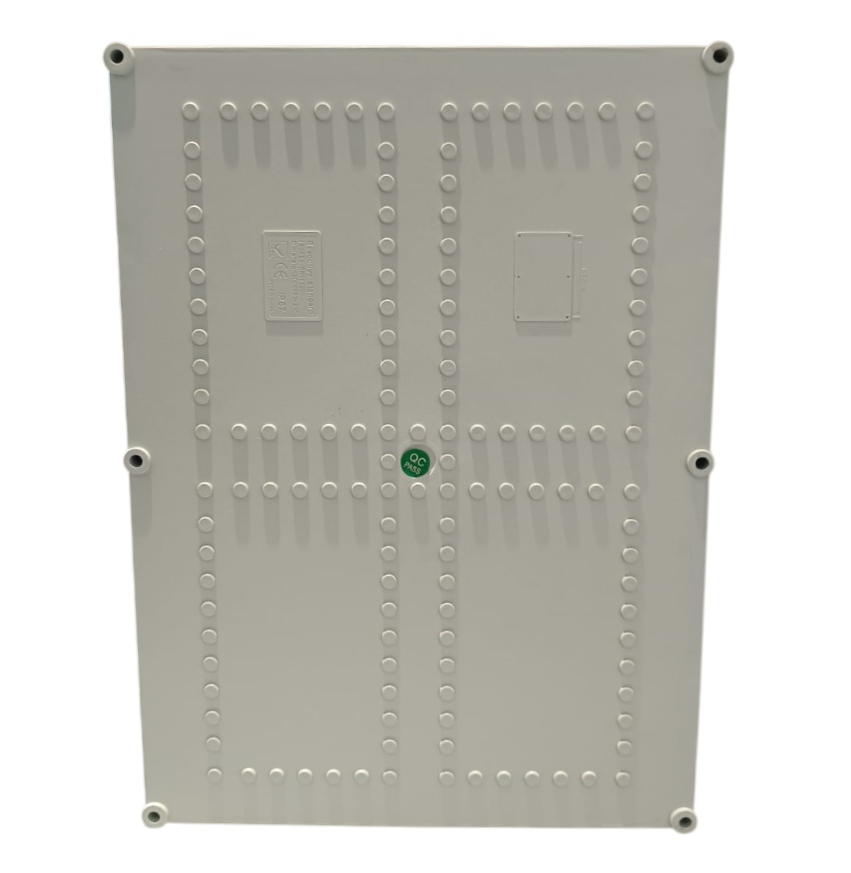

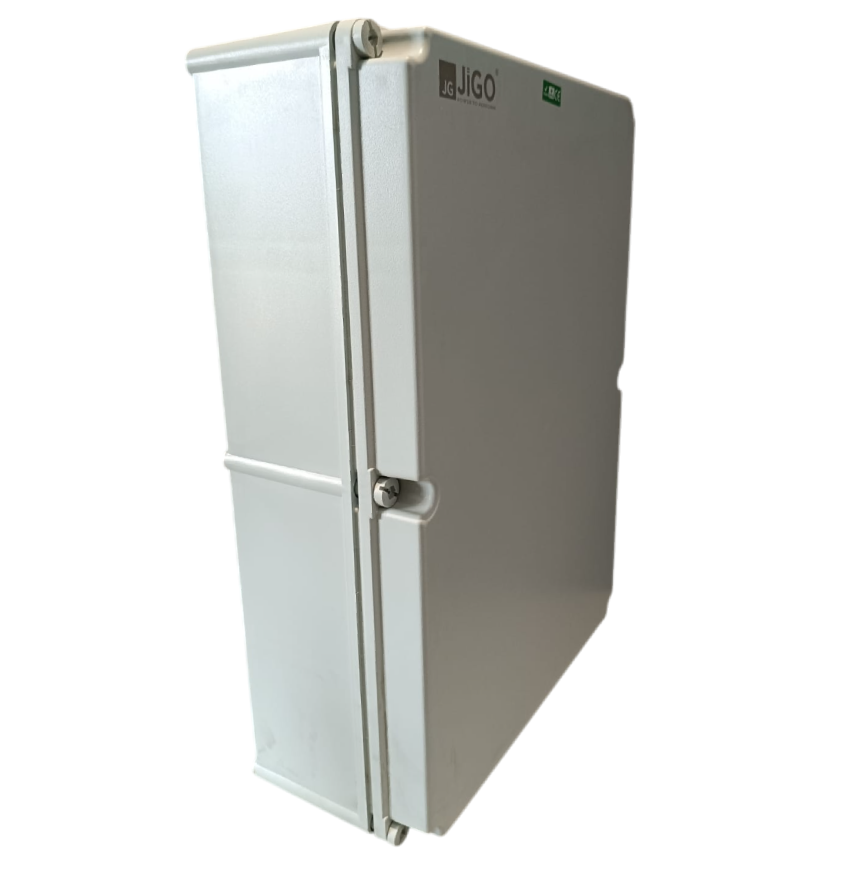

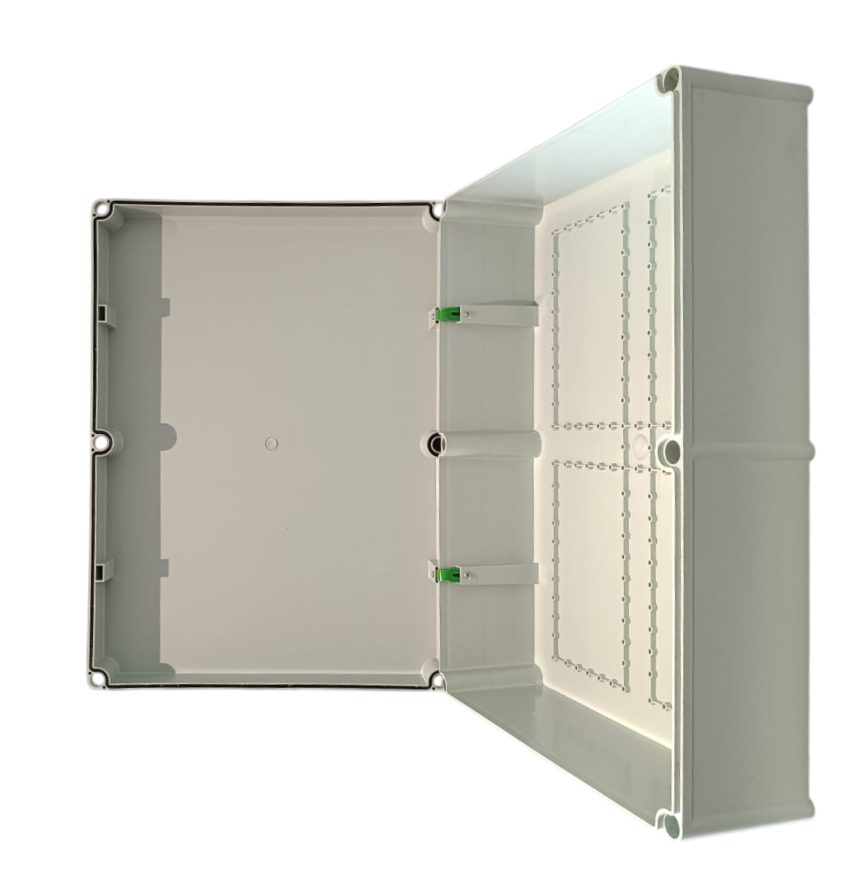

HS-680X500X200
- Category: HS SERIES
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
The HS-680X500X200 is a high-capacity, industrial-grade junction box engineered to protect electrical and electronic components in harsh and demanding environments. With superior sealing, ample internal space, and rugged construction, it is ideal for complex installations in both indoor and outdoor settings.
Product Details
Model: HS-680X500X200
Product Type: Electrical Junction Box
External Dimensions: 680mm (Length) x 500mm (Width) x 200mm (Height)
Material: [Specify – Polycarbonate / ABS / Sheet Steel / Aluminum]
Color: Light Grey (RAL 7035)
Ingress Protection: IP66 / IP67 – Dust-tight and protected against high-pressure water or temporary immersion
Cover Type: Screw-fixed or hinged with optional locking system
Sealing: Continuous rubber or silicone gasket for water and dust resistance
Mounting Options: Wall or surface mountable with internal mounting plate points
Temperature Range: -40°C to +85°C
Certifications: CE, RoHS compliant, optional UL / IEC rated
Key Features
Extra-large internal volume for advanced electrical systems
Durable construction for industrial and outdoor use
UV-resistant and flame-retardant housing
Reliable sealing to prevent ingress of dust, water, and contaminants
Flexible cable entry with knockout or gland options
Compatible with DIN rails, back plates, and terminal block systems
Corrosion-resistant hardware for long service life
Simple installation and maintenance access
Applications
Industrial control and power distribution systems
Solar PV combiner and junction boxes
Large-scale automation and instrumentation enclosures
Electrical and data network hubs
Outdoor lighting, signage, and surveillance wiring
Renewable energy and battery storage systems
Smart building infrastructure and HVAC controls
