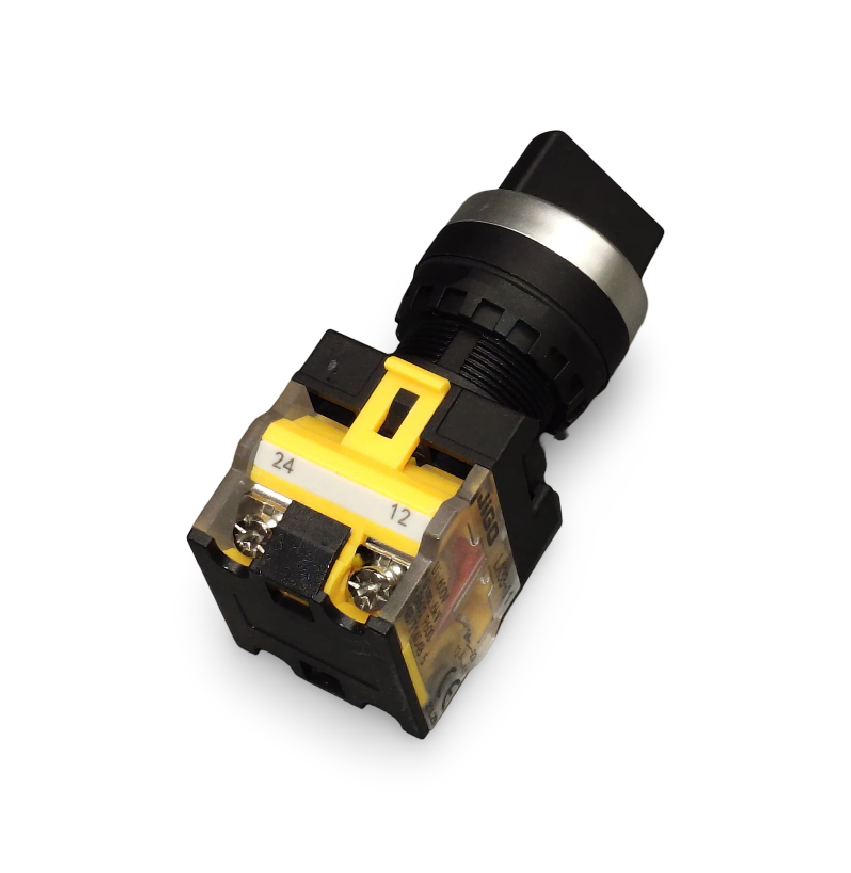

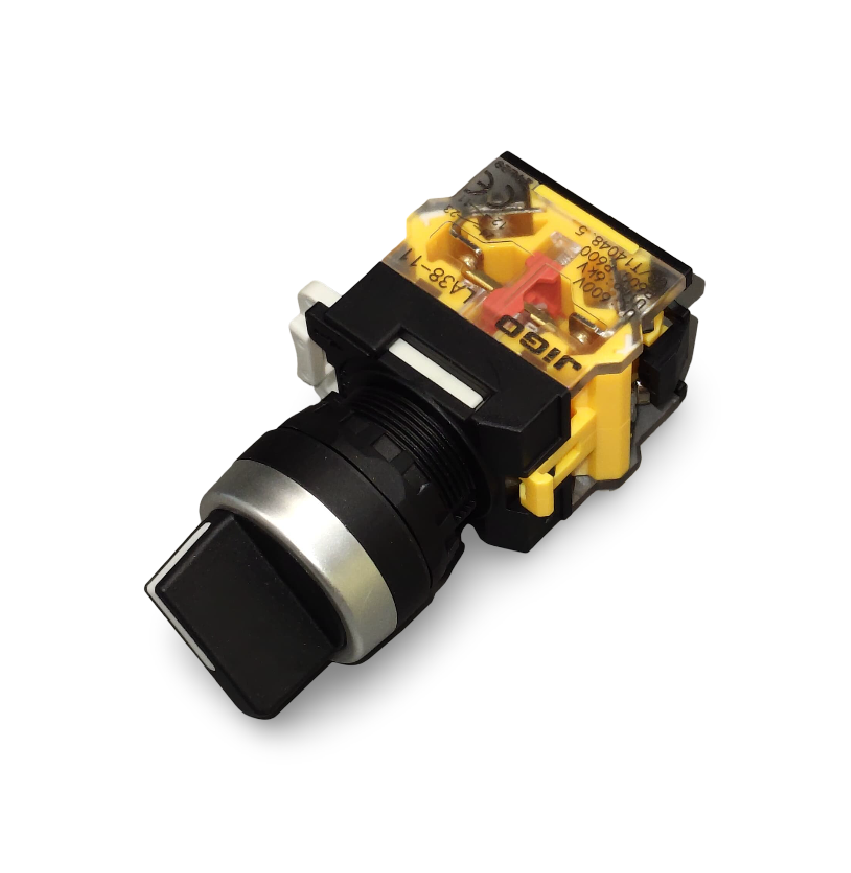

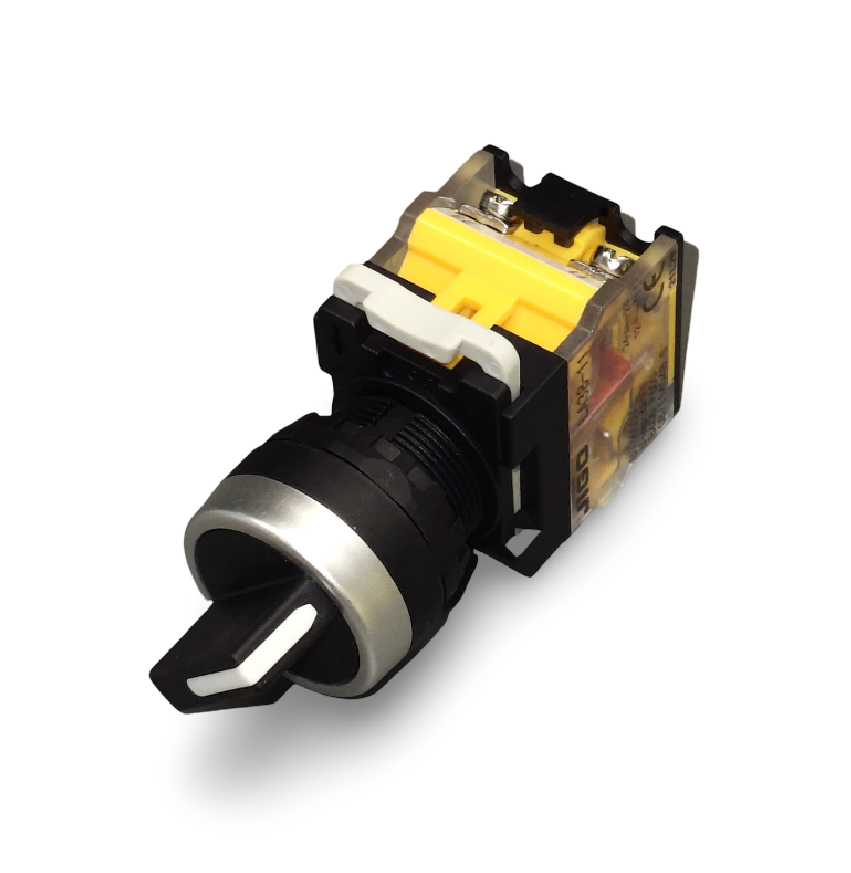

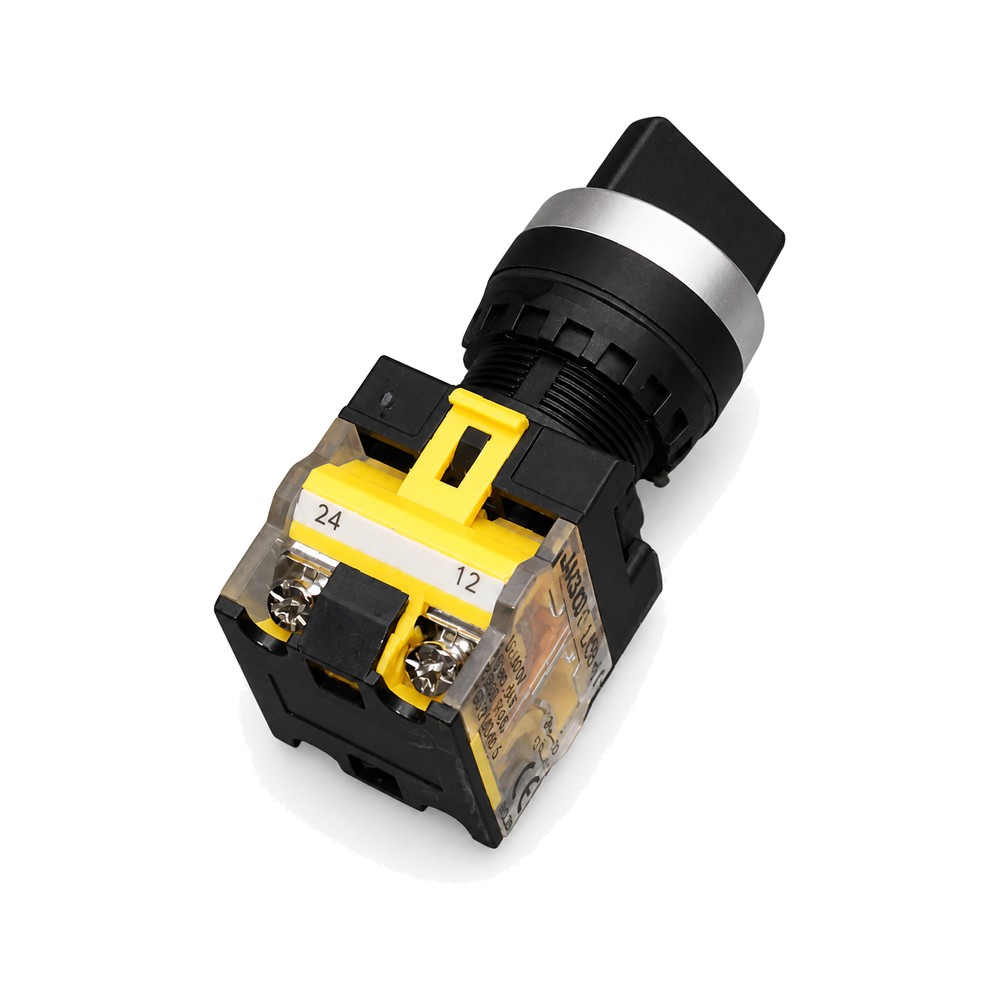

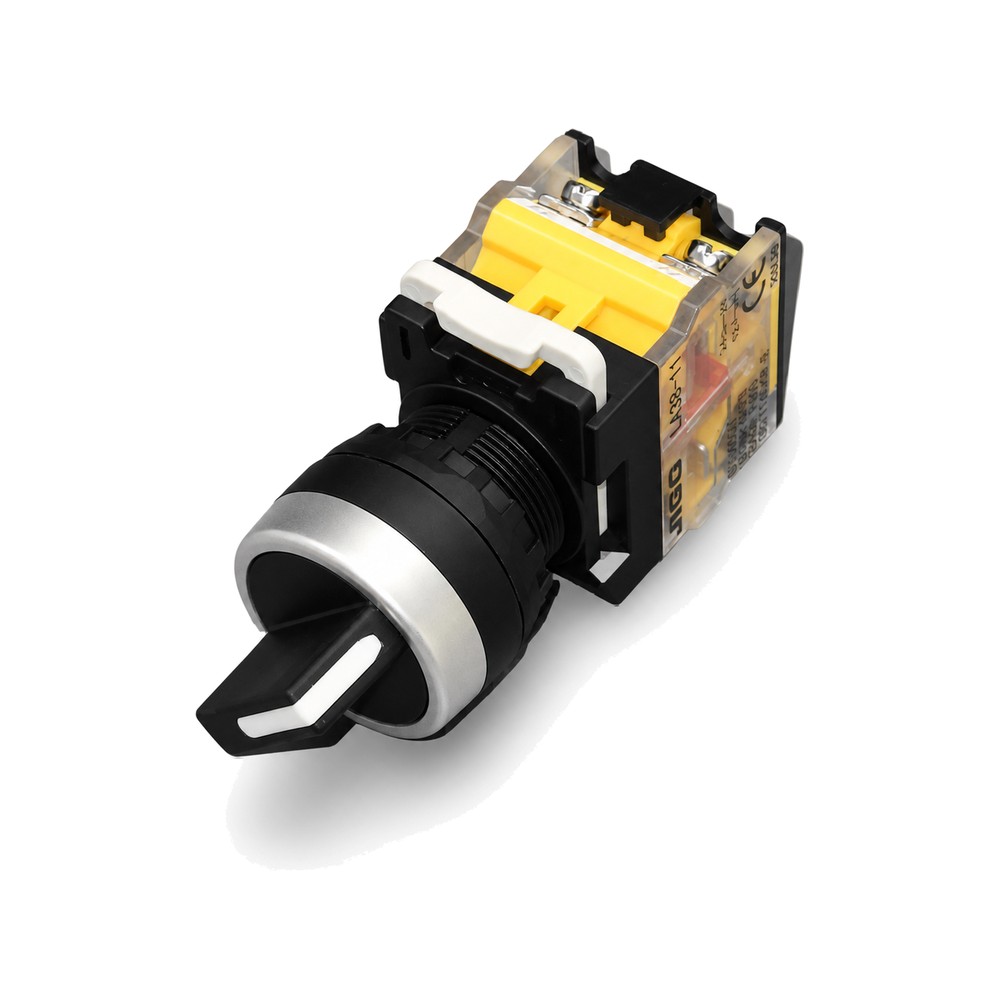

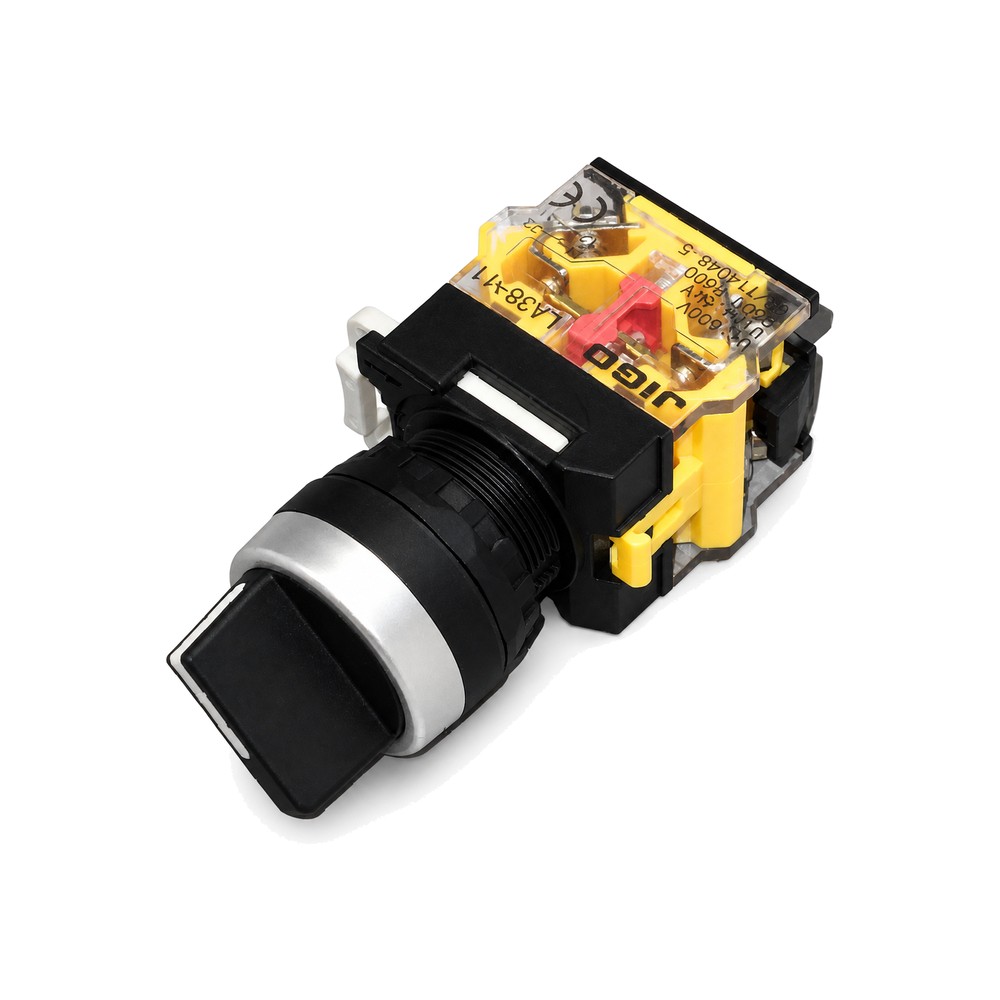

LA38-11-X21 -2P BLACK SELECTOR SWITCH
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
LA38-11 X21 -2P BLACK Selector Switch is a 2-position rotary selector switch with a black handle, designed for industrial control panels. It offers smooth and reliable selection between two functions with a maintained action.
Product Details
Model: LA38-11 X21
Color: Black
Type: 2-Position Selector Switch (Maintained)
Contact Configuration: 1NO + 1NC
Rated Voltage: 220V AC
Mounting Hole Diameter: 22mm
Material: Flame-retardant plastic body with metal components
Terminal Type: Screw terminal
Operation Type: Rotary, 2-position (left/right or up/down based on panel orientation)
Key Features
Maintained (stay-put) action for ON/OFF or mode switching
Compact and robust design for industrial use
High mechanical life and stable switching
Standard 22mm panel mounting
Clearly defined positions with firm detents
Black selector for universal or neutral function control
Easy wiring with secure screw terminals
Applications
Motor forward/reverse or ON/OFF control
Power or function mode selection
Automation and PLC control panels
Electrical distribution boards
HVAC systems and machine panels
Industrial machinery and custom-built consoles
Any equipment requiring two-mode switching
