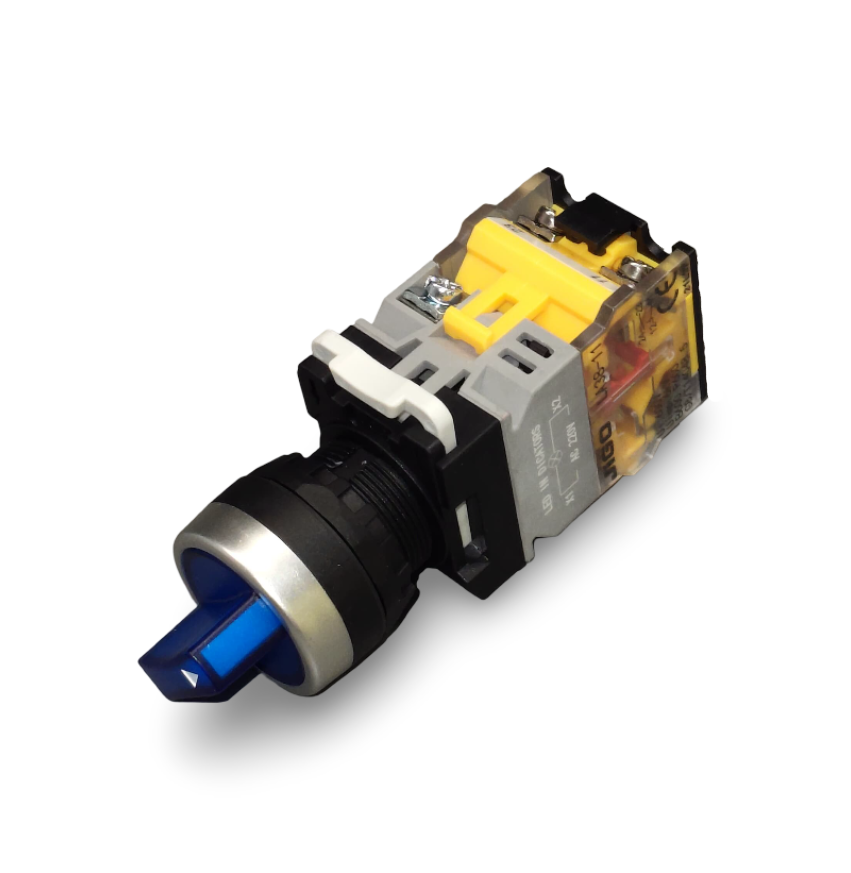

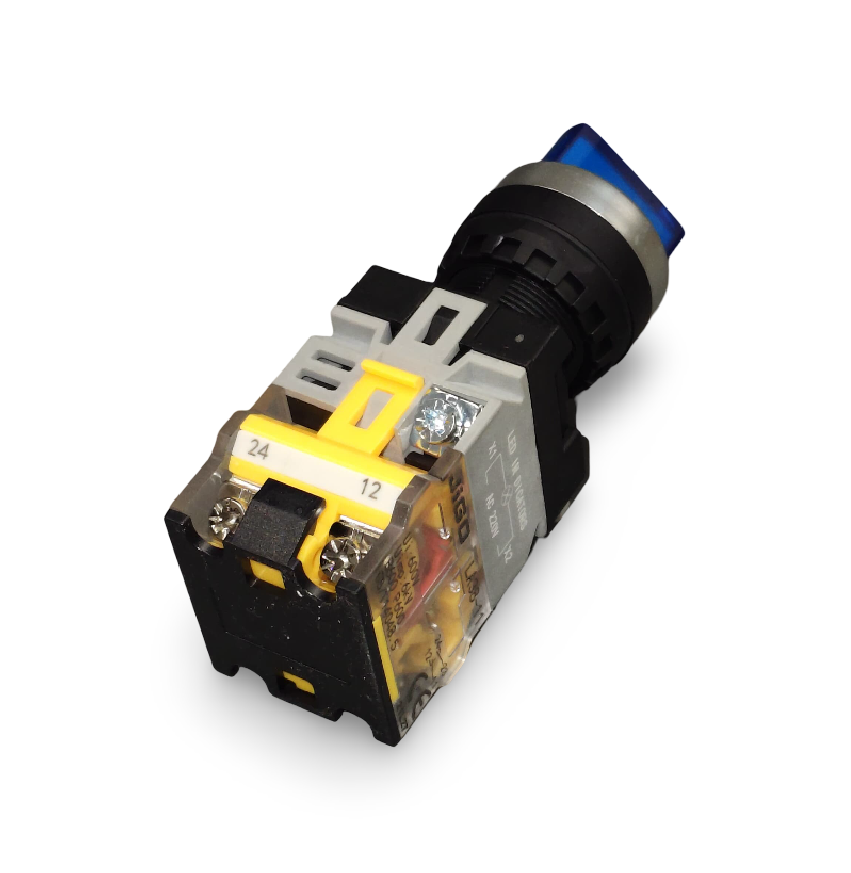

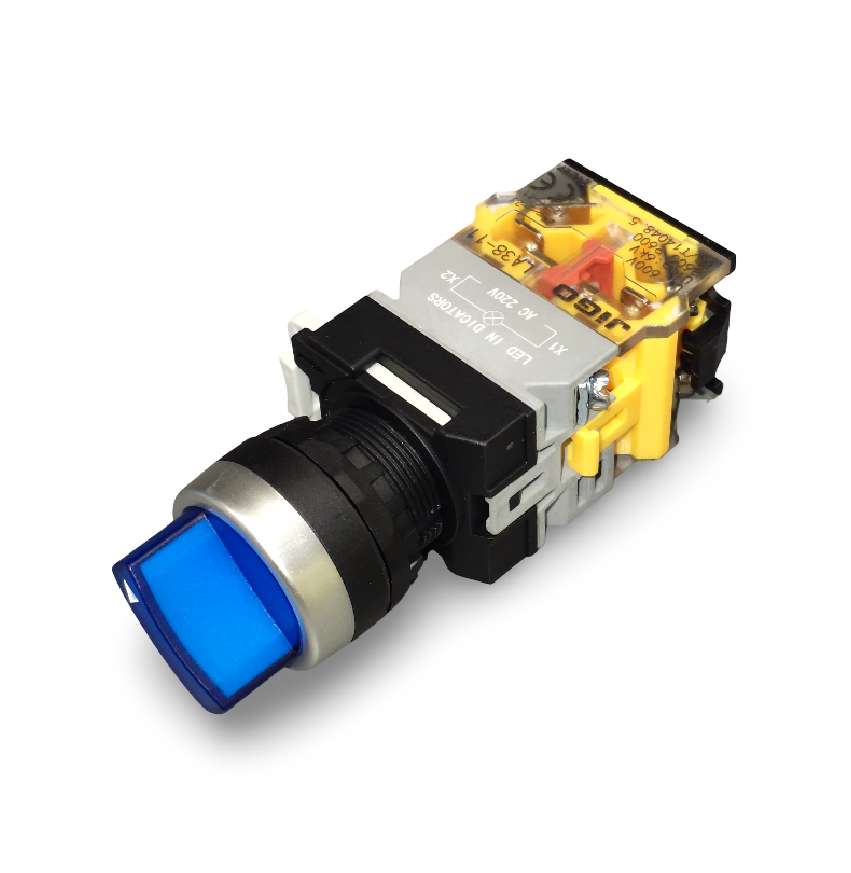

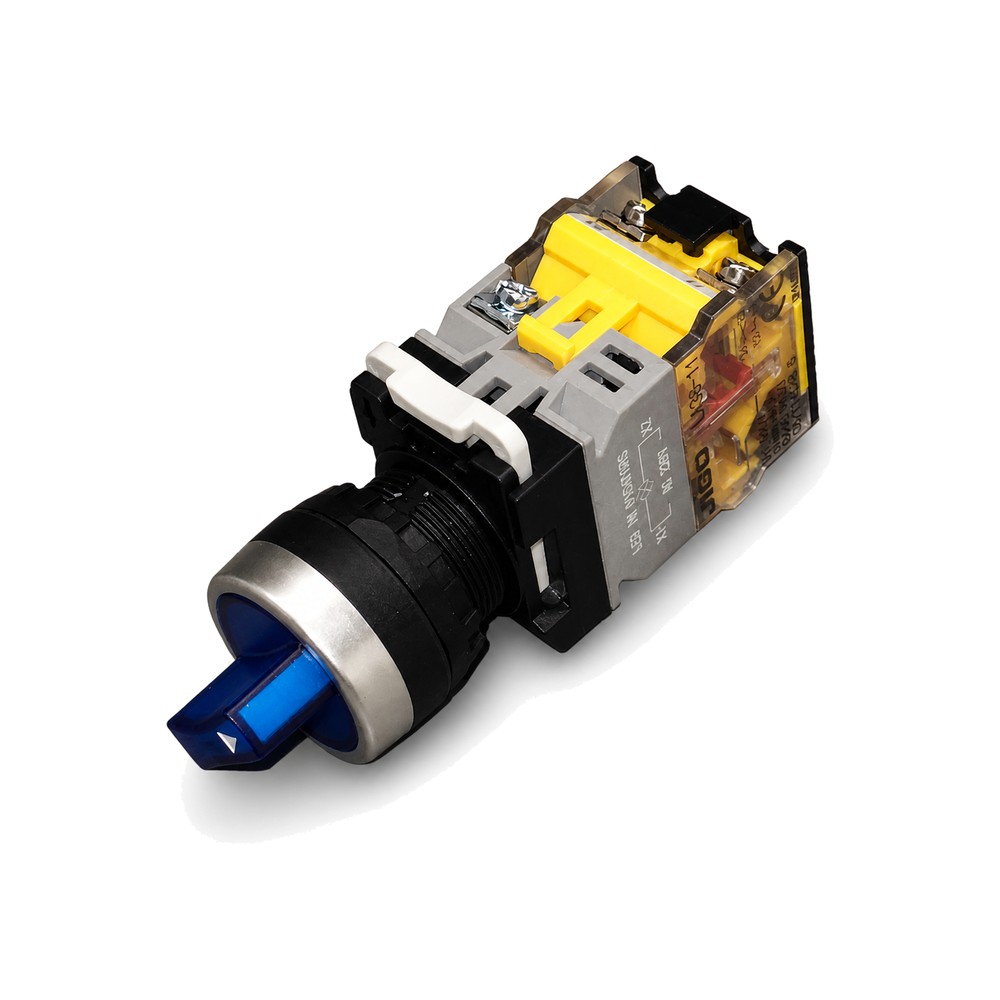

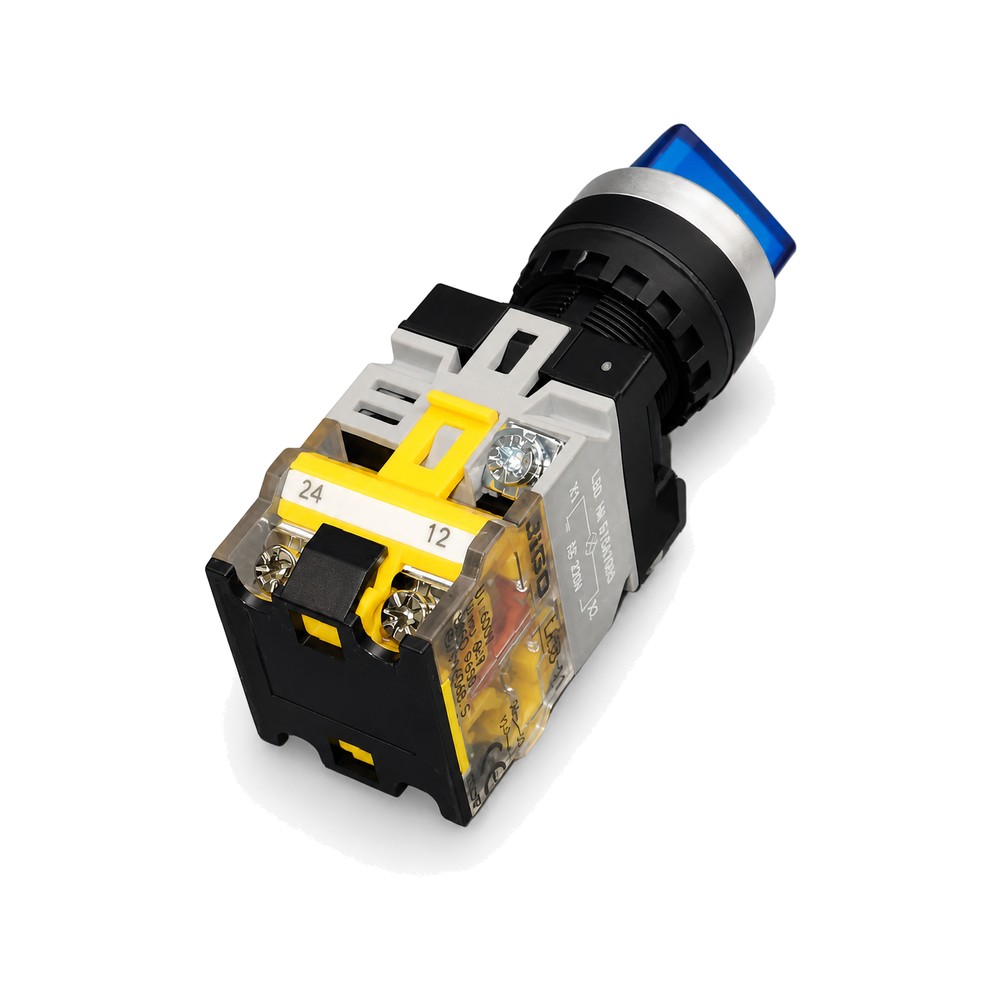

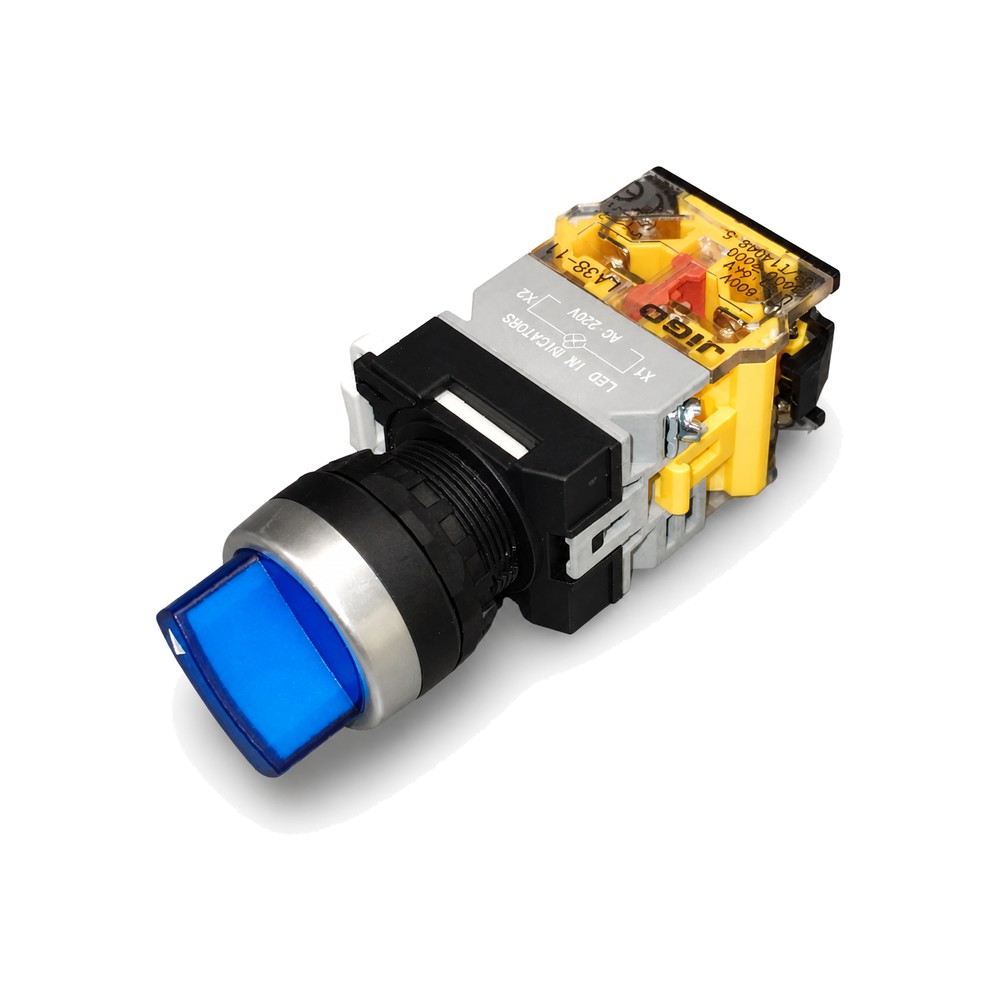

LA38-11-XD21 BLUE 220V 2P SELECTOR SWITCH WITH LED
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
LA38-11-XD21 BLUE 220V 2P Selector Switch with LED is a 22mm panel-mounted rotary selector switch featuring a blue illuminated head. Designed for industrial control panels, it provides both switching functionality and visual status indication through its built-in LED.
Product Details
Model: LA38-11-XD21
Color: Blue
Type: Selector Switch with LED illumination
Contact Configuration: 1NO + 1NC
Rated Voltage: 220V AC
Mounting Hole Diameter: 22mm
LED Voltage: 220V AC
Material: Flame-retardant plastic body with metal and transparent LED cap
Terminal Type: Screw terminal
Operation Type: Maintained rotary action (2-position or 3-position depending on variant)
Key Features
Built-in LED for clear status indication
Bright blue illumination for easy visibility in low light
2-position or 3-position rotary selector (model-specific)
Dual contacts (1NO + 1NC) for versatile wiring options
Durable construction for industrial environments
Standard 22mm mounting for easy panel integration
Long service life and low power consumption LED
Applications
Electrical and automation control panels
Motor ON/OFF or function selection with status display
Process control and power selection systems
Equipment requiring operator feedback through illumination
Machine consoles, elevators, and generator control
Any system that benefits from both control and indication
