LA38-11-XD21 RED 220V 2P SELECTOR SWITCH WITH LED
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

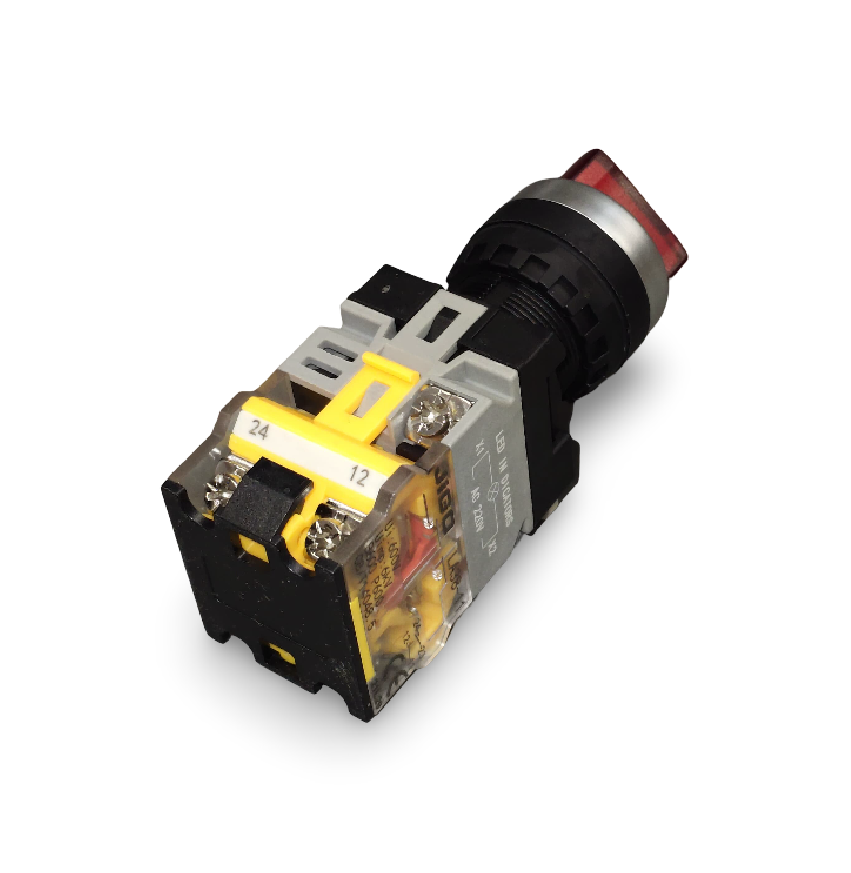

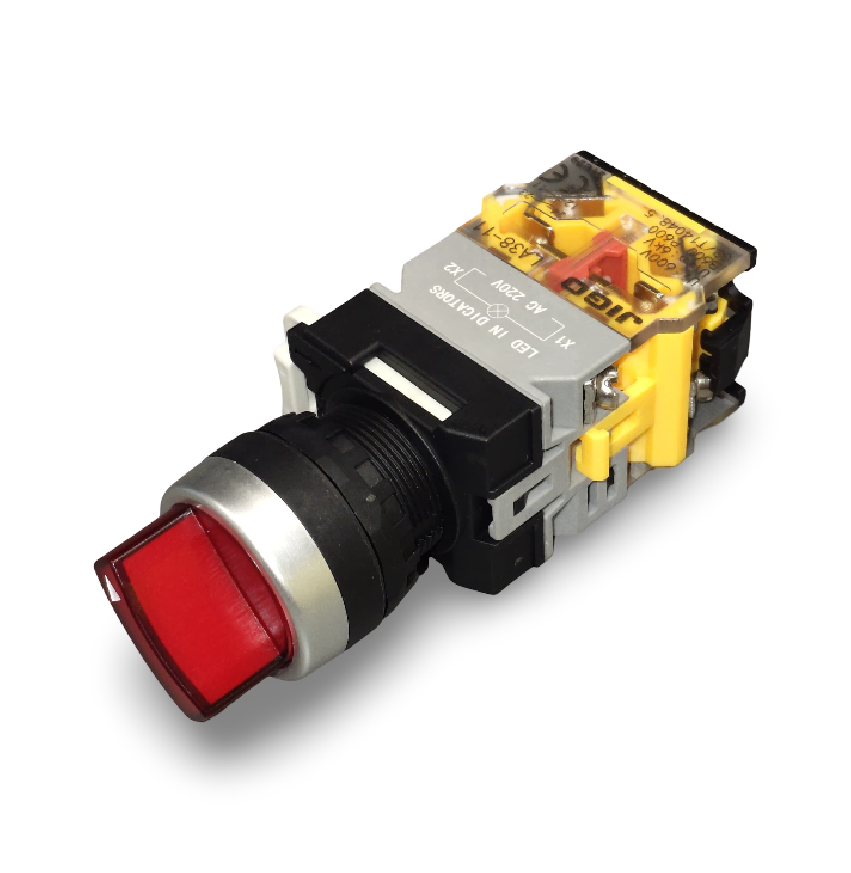

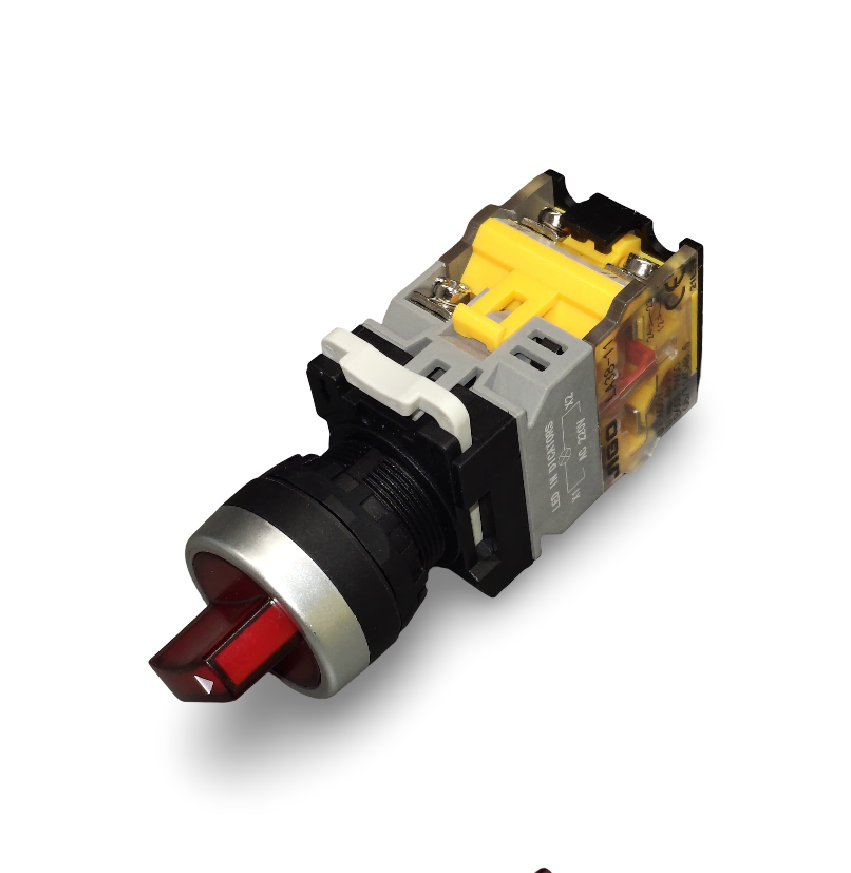

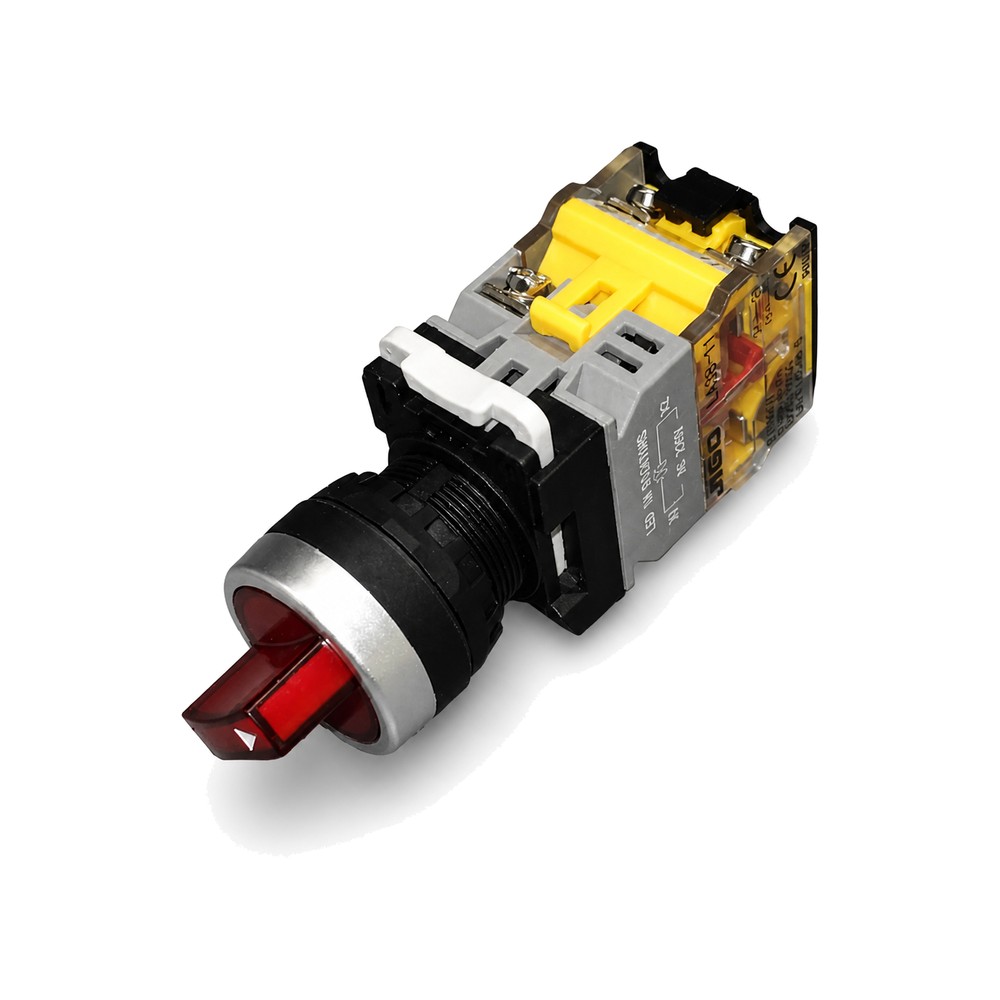

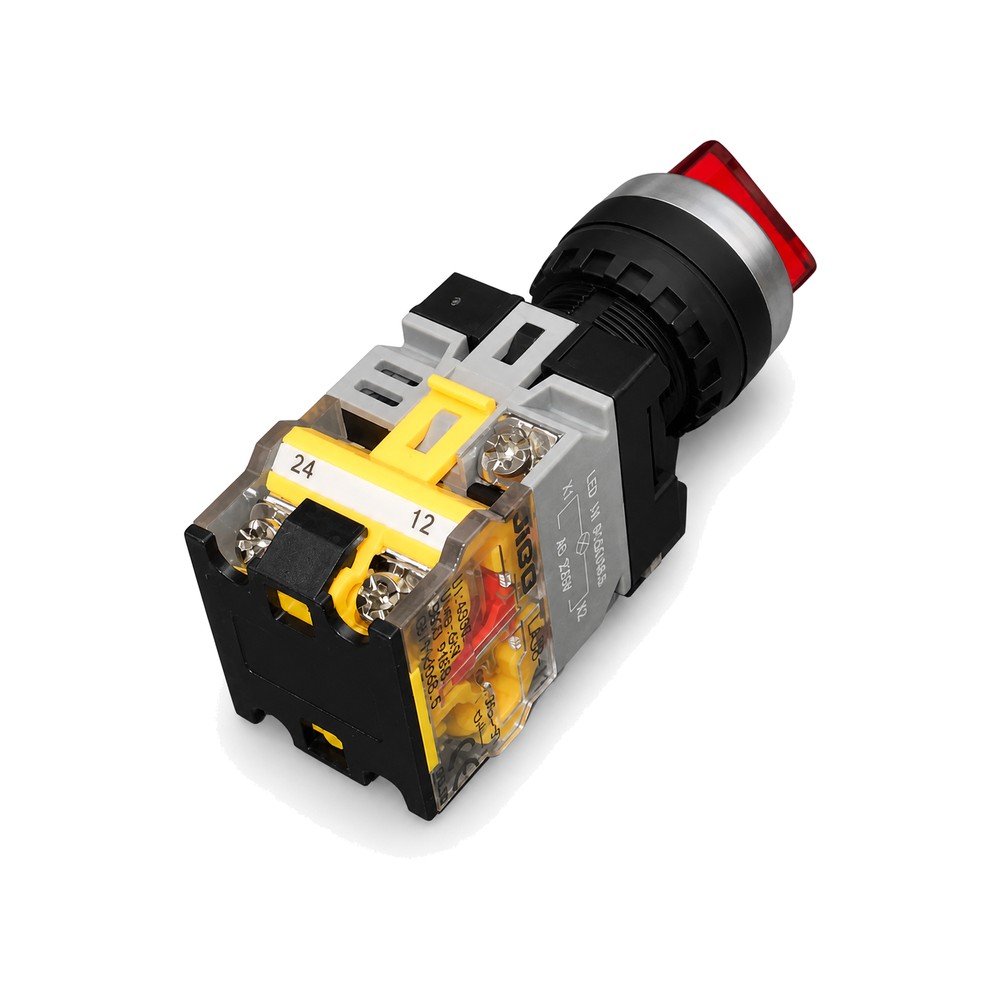

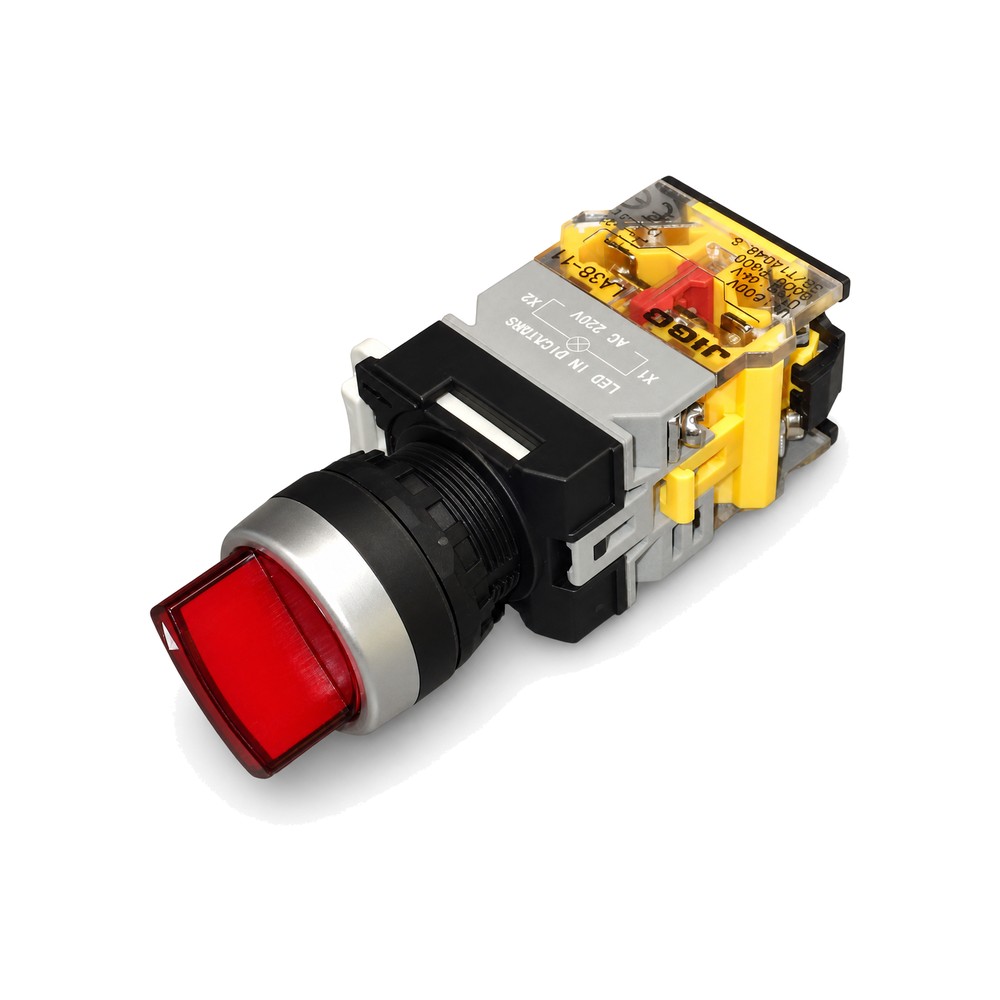

LA38-11-XD21 RED 220V 2P Selector Switch with LED is a 2-position illuminated rotary selector switch designed for control panels. It features a red LED indicator that provides real-time visual feedback, making it ideal for ON/OFF or emergency control applications in industrial environments.
Product Details
Model: LA38-11-XD21
Color: Green
Type: Illuminated Selector Switch
Contact Configuration: 1NO + 1NC
Rated Voltage (Switch & LED): 220V AC
Mounting Hole Diameter: 22mm
Material: Flame-retardant plastic body, metal components, clear illuminated cap
Terminal Type: Screw terminals
Operation Type: Rotary, maintained (2-position or 3-position depending on variant)
LED Type: Integrated, low-power green LED
Key Features
Built-in green LED for clear operational indication
Rotary selector action with firm detents for precise control
Maintained positions—stays in selected mode until changed manually
Durable and reliable for industrial use
Compatible with standard 22mm panel holes
Dual contact block (1NO + 1NC) for flexible circuit control
Long LED lifespan with low power consumption
Applications
Control panels for motors, pumps, and automation systems
Selector switches with visual ON indication
Mode selection (Auto/Manual, Forward/Reverse, etc.)
Electrical switchboards and distribution units
Industrial machines and processing equipment
Elevators, HVAC systems, and generator controls
Any system needing combined selector switch + LED feedback
