UT-256
- Category: Clamp Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 2500

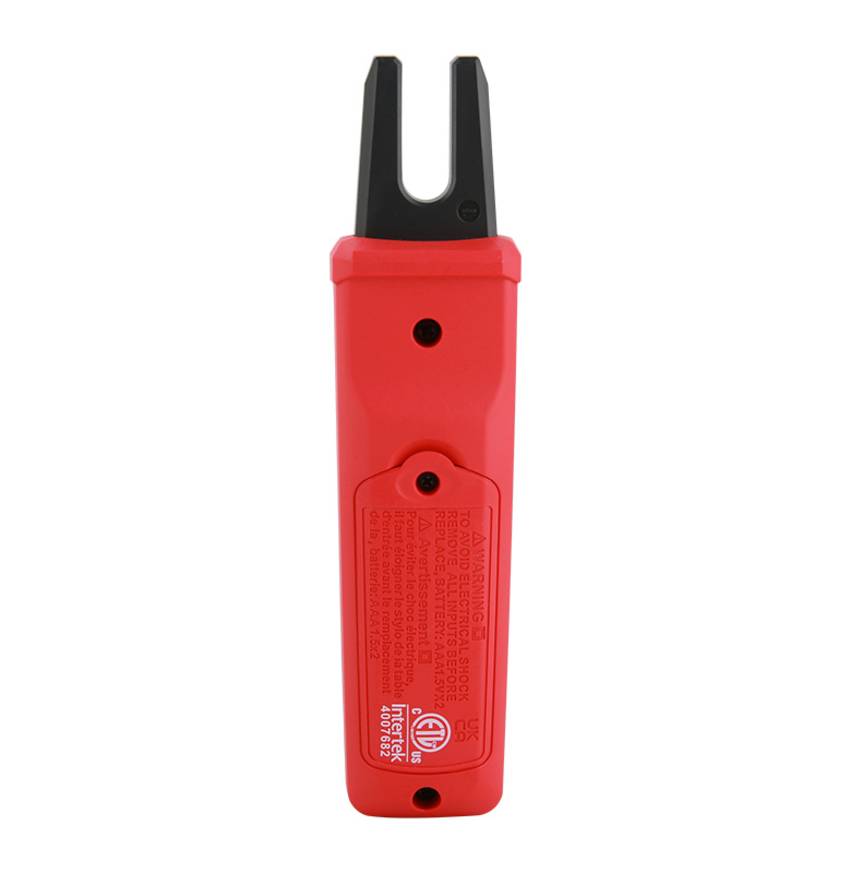

UT256 is a CAT III 600V auto-ranging True RMS fork meter that measures 60A AC/DC current. It can detect the presence of voltage via the integrated non-contact voltage (NCV) sensor on the tip of the fork.
Features of UT256 60A AC/DC Fork Meter
Certificates: CE, UKCA, cETLus
● 60A AC/DC current measurement
● True-RMS
● Jaw opening: 10mm
● Zero function
● Data hold
● Relative mode
● NCV
● CAT III 600V
Specifications of UT256 60A AC/DC Fork Meter
| Specifications | Range | UT256 |
| DC current (A) | 60A | ±(2%＋5) |
| AC current (A) | 60A | ±(2%＋5) |
| Features | ||
| NCV | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Backlight | √ | |
| Audible and visual alarm | √ | |
| Auto power off | Approximately 30 minutes | √ |
| Drop test | 1m | |
| Safety rating | CAT III 600V | |
| General Characteristics | |
| Power | AAA 1.5V x2 |
| Product color | Red+Gray |
| Product net weight | 120g (Including batteries) |
| Product size | 171x 42x 28mm |
| Standard accessories | English manual, test leads, batteries, strap string |
| Standard individual packing | Gift box,carrying bag |
| Standard quantity per carton | 40 pcs |
| Standard carton measurement | 380×225×290mm |
