UTi260B
- Category: THERMAL IMAGER
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 41800
UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
Features :
- Durable and user-friendly
- 2.8” TFT display screen (320×240 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: 3 Points
- Image capture
- Image modess: Thermal,Visual image,Fusion,PIP
- Digital camera resolution: 640×480
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- LED flashlight
- PC software analysis and real-time image projection)
- Rechargeable Li-ion battery

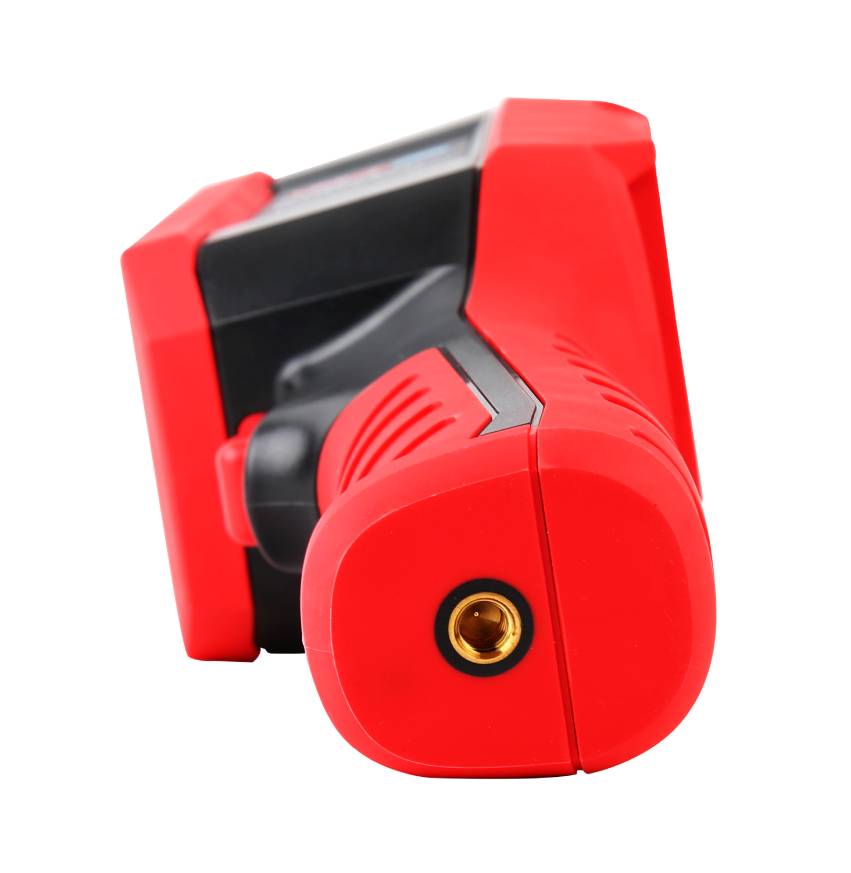

- 1/4”Tripod Mounting Hole
- IP65
- 2m drop proof
Product Specification of UTi260B
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 6 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,FCC,RoHS |
| Product net weight | 490g |
| Product size | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, English manual,Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 10 |
| Standard carton size | 500mm×315mm×295mm |
| Standard carton G.W. | 10.1kg |
