19MM 220V R SPRING RETURN
- Category: METAL PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 250

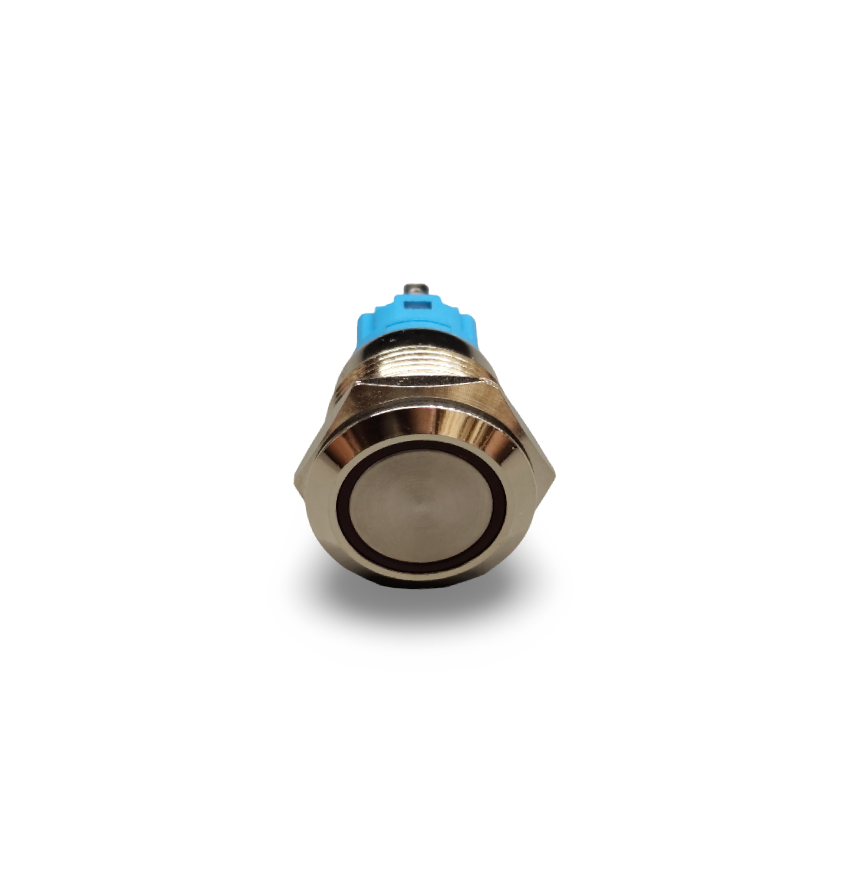

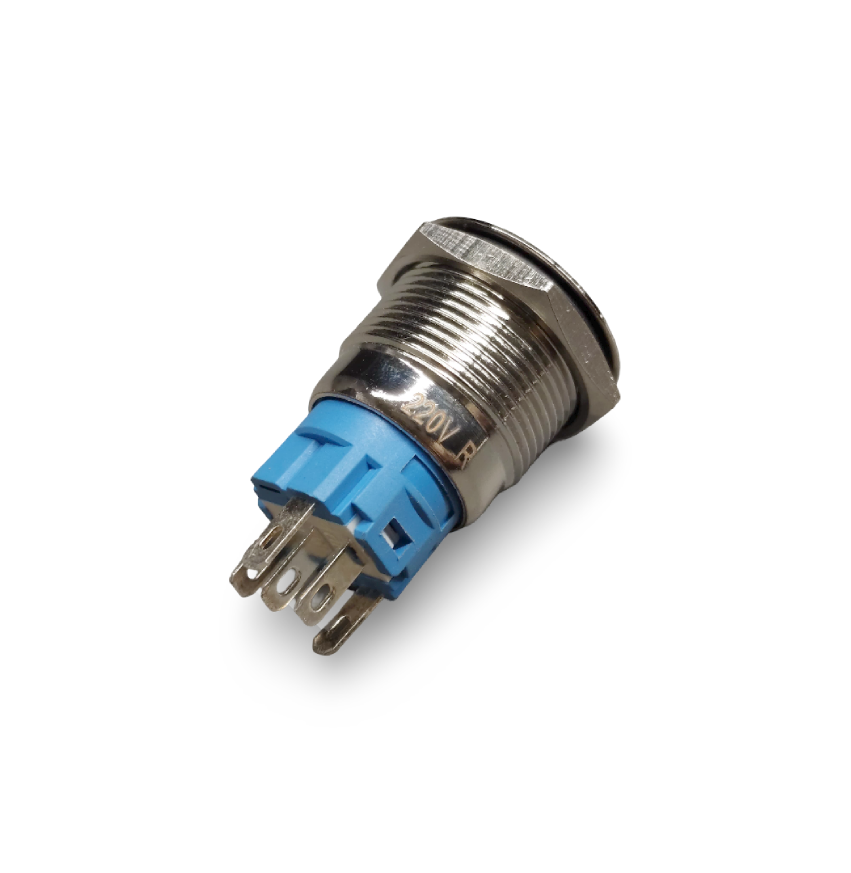

The JIGO 19MM 220V R Spring Return Metal Push Button is a compact, momentary-action switch with red LED illumination. Built with a durable metal body and spring-return mechanism, it is ideal for industrial and commercial control systems operating on 220V AC.
Product Details:
Mounting Hole Size: 19mm diameter
Voltage Rating: 220V AC
Operation Type: Momentary (spring return to original position)
Button Color: Red (R)
Illumination: Integrated red LED (powered by 220V AC)
Material: Stainless steel or zinc alloy bezel
Contact Configuration: 1NO / 1NC or 1NO+1NC (optional)
Ingress Protection: IP65 (dust and splash resistant)
Terminal Type: Screw or fast-on terminals
Mechanical Life: Over 1 million cycles
Electrical Life: Over 50,000 operations
Key Features:
Momentary spring-return action for responsive control
High-visibility red LED indicator (220V AC)
Sturdy metal construction for long-lasting durability
Compact 19mm mounting for space-saving designs
IP65-rated for industrial environments
Easy to install and connect
Applications:
Start/stop machinery buttons
Control panels and automation systems
Elevators and access control units
Power equipment interface panels
Security systems and alarm reset switches
DIY and embedded electronics
